CMP Polishing Pads: The Underestimated “Third Variable” in Yield Control

From Viscoelastic Modulus to Slurry Compatibility, the Polyurethane Disc Is Emerging as a Key Driver of CMP Performance.

On chemical mechanical polishing (CMP) production lines, engineers typically focus on two areas: slurry formulation and process-parameter optimization. Pressure, rotational speed, flow rate, and temperature are repeatedly adjusted to improve performance.

Yet one component participates in every polishing cycle while often receiving comparatively little attention as a process variable: the polishing pad.

In practice, polyurethane and damping-cloth pads that appear nearly identical can exert a significant influence on yield, cost, surface uniformity, and equipment productivity. The polishing pad is an often-overlooked factor in CMP performance.

What Does a Polishing Pad Actually Do?

Polishing pads are sometimes described simply as soft materials placed beneath a wafer. While technically correct, this description understates their function.

In CMP, material removal results from the combined effects of chemical reactions and mechanical abrasion. The slurry provides chemical activity and free abrasives, while the polishing pad performs three critical functions:

Mechanical Support and Micro-Cutting

The pad’s microscopic surface asperities press against the wafer under load. Together with the abrasive particles in the slurry, they support material removal from the wafer surface.

Slurry Transport

Grooves and micro-pores in the pad help distribute slurry throughout the contact zone and remove reaction by-products generated during polishing.

Self-Sharpening and Process Stability

With the assistance of a conditioner, the pad surface maintains a fresh and dynamically rough texture, helping stabilize polishing performance over time.

In other words, the polishing pad is neither a purely passive carrier nor an active chemical participant. It is the interface that connects the chemical and mechanical aspects of CMP. Even small variations in the pad can be amplified across the uniformity of an entire wafer or workpiece.

Why Hardness Is Not the Only Performance Indicator

A common industry practice is to use Shore D hardness as a rough measure of polishing-pad quality. However, a polishing pad is a typical viscoelastic material, and its actual behavior is determined by its dynamic mechanical response.

Storage modulus (E′) represents the elastic component and determines the pad’s support stiffness against the wafer.

Loss modulus (E″) represents viscous energy dissipation and affects stress relaxation and contact conformity.

The loss tangent (tan δ), or the ratio between the loss and storage moduli, indicates the degree of damping in the pad. A higher tan δ generally reflects stronger damping behavior.

Hard pads with a higher storage modulus typically provide higher material-removal rates and improved global planarization. However, they may also increase the risk of dishing and erosion on patterned wafers.

Soft pads generally offer better conformity and can help suppress localized defects, but they may compromise removal efficiency and service life.

Pad selection is therefore fundamentally a balancing exercise. Requirements vary according to the film being processed—such as silicon oxide, tungsten, copper, or sapphire—and may also change for the same film at different technology nodes. As a result, the optimal balance between stiffness and compliance must be recalibrated for each application. This is one reason fabs often use multiple pad specifications across different process lines.

The Engineering Logic Behind Groove Design

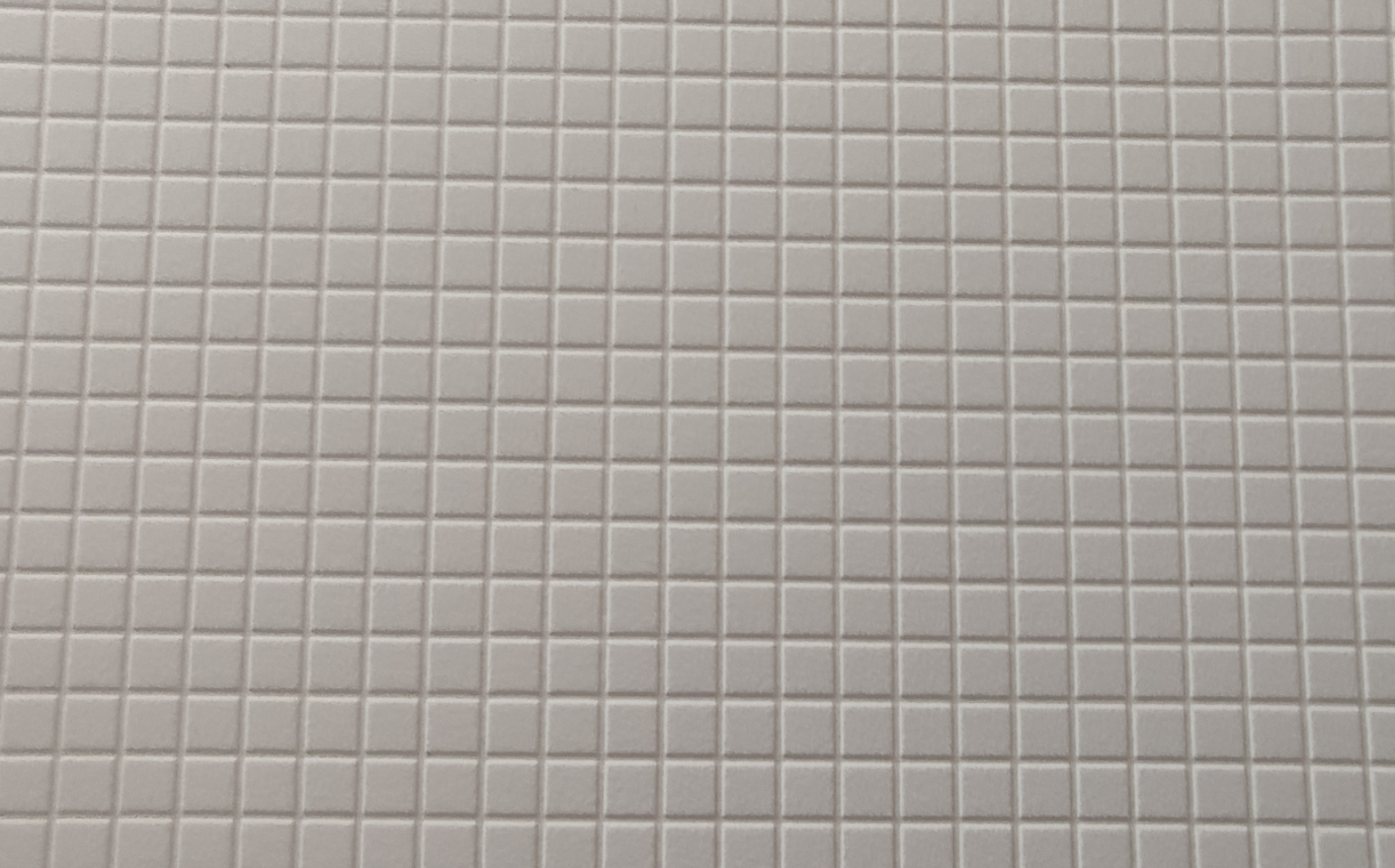

A polishing pad may feature concentric circles, radial lines, grids, or even snowflake-like patterns. These grooves are not decorative. Their primary purpose is fluid management.

A pad with a completely flat polishing surface can cause slurry to accumulate near the center while drying or becoming depleted toward the edge. This can lead to radial non-uniformity in the removal rate.

Grooves expand the available transport channels, distribute slurry more evenly across the contact area, accelerate the removal of waste liquid, and help reduce heat accumulation.

However, grooves also change the local effective contact area. If they are excessively deep or wide, they can weaken mechanical removal and introduce periodic surface patterns, potentially contributing to micro-scratches.

For this reason, groove geometry—including depth, width, spacing, and topology—must be optimized together with slurry viscosity, downforce, and platen speed rather than treated as an isolated design parameter.

Conditioning Gives the Pad a “Second Life”

One of the counterintuitive characteristics of a polishing pad is that it gradually becomes less effective with use.

Under the combined influence of frictional heat and slurry chemistry, polyurethane pads can experience surface passivation, pore closure, and glazing. As microscopic roughness decreases, the material-removal rate also declines.

This is where conditioning becomes essential. A conditioner is typically a rigid disc embedded with diamond particles that periodically removes the worn surface and exposes a fresh polishing layer.

Conditioning intensity—including pressure, rotational speed, and sweep pattern—directly affects pad life and process stability.

Insufficient conditioning allows the pad surface to glaze, causing the removal rate to fall. Excessive conditioning accelerates pad wear, raises operating costs, and may cause diamond particles to detach, potentially producing severe scratches.

Experienced process engineers therefore establish a relationship between conditioning intensity, pad life, and removal-rate decline. Rather than relying on trial and error, they use process models to determine the appropriate conditioning strategy.

As CMP applications continue to move toward tighter dimensional tolerances and higher wafer-level uniformity, the polishing pad is increasingly being recognized not as a replaceable consumable, but as a central process variable—one that must be engineered in coordination with the slurry, equipment, and wafer material.

The Overlooked Interaction: Pads and Slurries Are Not Independent Variables

We have seen many similar cases: after switching to a new slurry, the removal rate falls outside the target range, and the first response is to modify the slurry formulation or adjust the polishing pressure. After switching to a new pad, wafer uniformity deteriorates, and the immediate reaction is to revert to the previous pad.

However, CMP is a strongly coupled system.

Consider a high-solids, high-viscosity silica slurry. When paired with a hard pad, it may produce an excessively high removal rate and increase the number of scratches. When the same slurry is used with a slightly softer pad featuring more open grooves, slurry transport can improve and free abrasives can be distributed more evenly. As a result, both the scratch rate and removal rate may be brought back within the desired process window.

Conversely, if the pad has low porosity and the slurry is too dilute, localized “dry-friction” hotspots may develop in the contact zone. These hotspots can trigger localized corrosion and non-uniformity.

This is both the challenge and the value of CMP process development: the pad and slurry must be treated as a coupled pair and optimized together. Adjusting either one in isolation can lead to a cycle of repeated trial and error.

Fixed-Abrasive Pads: A Direction Worth Watching

Traditional polishing relies on free abrasives, with particles suspended in the slurry and participating randomly in the cutting process. A fixed-abrasive pad (FAP), by contrast, embeds the abrasive particles directly into the pad. During polishing, the pad itself performs the cutting action.

The theoretical advantages are clear: abrasive distribution can be controlled more precisely, the slurry only needs to provide the required chemical environment, and defect rates could potentially be reduced significantly.

FAP technology has already been introduced experimentally in applications involving copper and barrier layers. However, pad uniformity, abrasive retention, and cost remain major barriers to large-scale industrial deployment.

As a developing technology, FAP highlights an important point: the evolution of polishing pads is not simply about making them softer or harder. It may ultimately involve rebuilding the entire material-removal mechanism.

Reconsidering the Role of the Polyurethane Pad

Why should engineers devote so much attention to what appears to be an ordinary polyurethane disc?

Because CMP yield ultimately depends on surface morphology at the nanometer scale. That morphology is the result of a complex interaction among chemical reactions, mechanical forces, and fluid transport at the interface between the pad, slurry, and wafer.

Treating the polishing pad as a core variable that can be adjusted, modeled, and optimized in coordination with other process elements can often open the process window more effectively than simply adding or adjusting parameters.

This is also why we have spent years working directly with CMP production lines while developing both polishing slurries and polishing pads. Only by understanding how the two materials interact can suppliers provide a system-level solution when customers report problems such as a 5% drop in removal rate or uniformity falling outside the process window.

The answer is not always to replace the material. In many cases, the better solution is to optimize the system.
